2.7 “TFT LCD LCD color screen RGB8-bit port 40Pili8961 LCD screen Featured Image
  • 2.7 “TFT LCD LCD color screen RGB8-bit port 40Pili8961 LCD screen
  • 2.7 “TFT LCD LCD color screen RGB8-bit port 40Pili8961 LCD screen
  • 2.7 “TFT LCD LCD color screen RGB8-bit port 40Pili8961 LCD screen

2.7 “TFT LCD LCD color screen RGB8-bit port 40Pili8961 LCD screen

Short Description:

 Stock Sample is Free & Available

Support small MOQ

We have two own factories in China. we are your best choice and your absolutely reliable business partner.

We provides customers with flexible customization services: customized screen FPC, screen IC, screen backlight, touch screen cover plate, sensor, touch screen FPC. For more details, please consult us, we will provide you with free project evaluation and project approval, and have a professional R & D personnel one-to-one project docking, welcome the demand of customers to find us!


  • Product Name: 2.7 inch display screen
  • Part No.: RXL-P027-10-V2
  • LCD OD: 46.2*63.1*2.38
  • Resolution: 960*240
  • Interface: RGB
  • Brightness: 280 nits

    • Product Detail

    Product Tags

    Product Introduction

    2.7 inch LCD screen, can be suitable for industrial applications, and can be customized for OEM/ODM.  The 3.5-inch LCD screen is a very practical screen solution that provides high-quality display effects and can be widely used in various industries and scenarios. Through optimized design and process, the screen has achieved excellent performance in terms of color reproduction, brightness and contrast, thus providing very clear and sharp image effects. At the same time, it also has the characteristics of high integration and low power consumption, which can meet the needs of different applications.

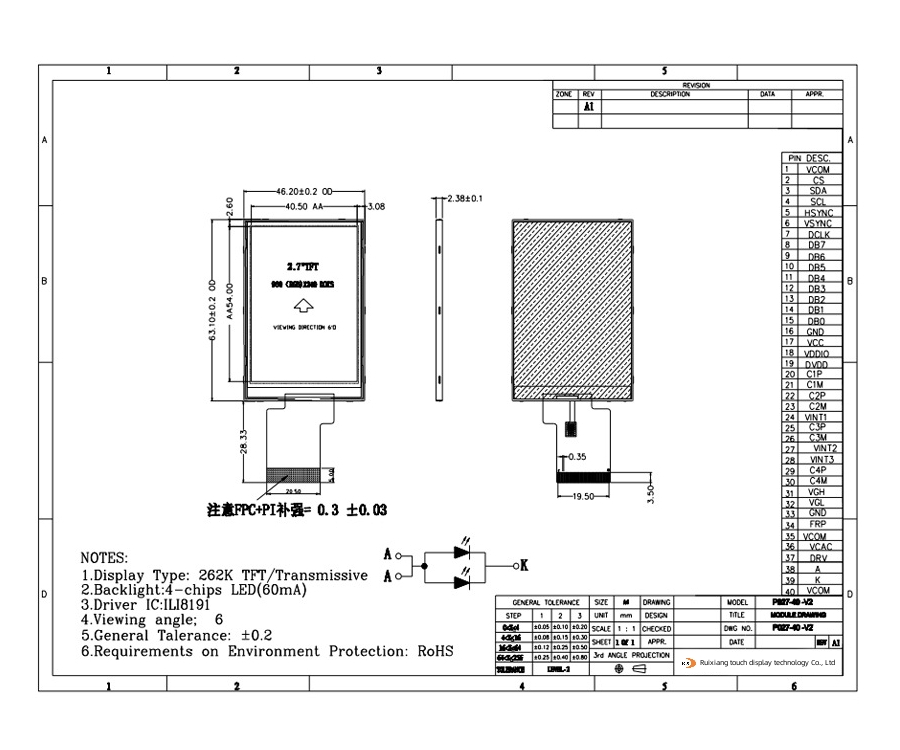

    1 tft display module

    Overall, the quality of the 2.7-inch LCD screen is excellent, thanks to the advanced technology and high-quality materials it uses. The screen panel is made of high-quality liquid crystal material, which has better transparency and thermal stability, and can avoid common problems such as bright spots and leaks. In addition, the screen also uses advanced backlight technology, which can provide a more uniform and stable backlight effect, thereby further improving the display quality.

    For different industries and applications, the 2.7-inch LCD screen can be customized to meet specific usage needs. For example, it has a wide range of applications in fields such as medical equipment, smart home, car navigation and industrial control. In terms of OEM/ODM customization, products can be customized according to customer needs to meet the needs and requirements of different customers.

    2 tft touch screen display

    Our Services

    To sum up, the 2.7-inch LCD screen is an excellent screen solution with excellent quality and can be widely used in various scenarios and applications. It is a very good choice for applications that require a high-quality display. At the same time, because it can be customized, better application effects can be obtained in different application scenarios.

    Product Specification

    logo1

    Ruixiang touch display technology Co., Ltd.

    LCD Display Module

    OEM/ODM customization is supported.
    The following are not all sizes. If the size you need is not in the list, please tell us the size you need.

    Size
    (inch)    		 Part No. Resolution LCD OD View Area
    (mm)    		 Interface IC FPC Remark
    2.4 RXL024074-A 240*320 42.72*58.9*2.2 36.72*48.96 MCU(P) ILI9341V 40PIN RTP/CTP Contact
    US
    RXL024091-A 240*320 42.72*60.26*2.6 36.72*48.96 MCU/SPI/RGB ST7789V 45PIN RTP/CTP
    RXL024102-A 240*320 42.72*60.26*3.6 36.72*48.96 MCU ST7789V 45PIN RTP/CTP
    RXL024102-A 240*320 42.92*60.26*3.78 36.72*48.96 MCU/SPI/RGB ST7789V 45PIN IPS
    2.8 RXL028052-A 240*320 50.2*69.7*2.6 43.2*57.6 MCU/SPI/RGB ST7789V 50PIN RTP/CTP
    RXL028075-A 240*320 50.5*69.7*2.6 43.2*57.6 MCU/SPI/RGB ST7789V 50PIN IPS
    RXL028092-A 240*320 50*69.2*2.45 43.2*57.6 MCU(P) ILI9341V 37PIN RTP/CTP
    3 RXL030053-A 240*400 45.4*77*2.6 39.24*65.4 MCU/SPI/RGB ILI9327 45PIN IPS Contact
    US
    RXL030076-A 240*400 45.4*77*2.6 38.88*64.8 MCU/SPI/RGB ILI9327 45PIN RTP/CTP
    3.2 RXL032054-A 240*320 55.04*77.2*2.5 48.6*64.8 MCU(P)/RGB ILI9341 40PIN RTP/CTP
    RXL032077-A 240*320 55*77.2*2.6 48.6*64.8 MCU/SPI/RGB ST7789V 50PIN RTP/CTP
    3.5 RXL035055-A 320*240 76.9*63.9*3.25 70.08*52.56 RGB HX8238A 54PIN RTP/CTP
    RXL035093-A 320*480 54.66*82.94*2.3 48.96*73.44 MCU(P)/RGB ILI9488 40PIN RTP/CTP
    RXL035103-A 320*240 76.9*63.9*4.5 70.08*52.56 RGB HX8238A 54PIN RTP/CTP
    RXL035109-A 320*240 76.9*63.9*4.55 70.08*52.56 RGB HX8238A 54PIN IPS
    RXL035113-A 320*480 54.58*83.57*2.1 48.96*73.44 MCU/SPI/RGB ILI9488 50PIN IPS
    RXL035036-A 320*480 55.5*84.9*2.5 48.96*73.44 MIPI ILI9488 20PIN IPS
    4 RXL040056-A 480*800 79.38*76.43*2.8 70.176*71.856 SPI/RGB ST7701S 50PIN IPS Contact
    US
    RXL040078-A 480*800 57.14*96.85*2 51.84*86.4 MIPI OTM8019A 20PIN IPS
    RXL040094-A 480*800 58.26*98.1*2.55 51.84*86.4 SPI+RGB ILI9806E 50PIN IPS
    RXL040026-A 480*800 57.15*96.85*2.3 51.84*86.4 RGB ILI9806 30PIN IPS
    RXL040104-A 480*800 57.14*96.85*2 51.84*86.4 MCU(P)/RGB ILI9806G 50PIN RTP/CTP
    4.3 RXL043057-A 480*272 105.4*67.15*2.86 95.04*53.86 16/18/24RGB ST7282 40PIN RTP/CTP
    RXL043079-A 480*800 62.5*105.55*2.5 56.16*93.6 16/18/24RGB ILI9806E 45PIN IPS
    RXL043095-A 480*272 105.4*67.15*2.85 95.04*53.86 8/24RGB SC7283 40PIN Wide temp/IPS
    RXL043105-A 480*800 62.5*105.55*2.5 56.16*93.6 MIPI ILI9806E 20PIN IPS
    RXL043119-A 480*272 53.856*95.04 53.856*95.04 RGB HX8257-A00 40PIN RTP/CTP
    RXL043002-A 480*272 53.856*95.04 53.856*95.04 RGB HX8257-A00 40PIN RTP/CTP
    4.5 RXL045058-A 480*854 61.54*110.1*2.55 55.44*98.64 SPI+RGB ILI9806E 45PIN RTP/CTP Contact
    US
    RXL045080-A 480*854 61.54*110.1*2.55 55.44*98.64 MIPI ILI9806E 20PIN IPS
    5 RXL050059-A 480*272 120.8*75.9*4.2 110.88*62.83 RGB HX8257-A00 40PIN RTP/CTP
    RXL050081-A 800*480 120.7*75.8*4.5 108*64.8 RGB ILI6122+ILI5960 40PIN RTP/CTP
    RXL050063-A 800*480 120.7*75.8*4.3 108*64.8 RGB ILI6122+ILI5960 40PIN RTP/CTP
    RXL050020-A 800*480 120.7*75.8*4.3.1 108*64.8 RGB ILI6122 40PIN RTP/CTP
    RXL050096-A 800*480 120.9*78.1*2.95 108*64.8 16/18/24RGB ST7262 40PIN Wide temp/IPS
    RXL050106-A 720*1280 67.56*122.35*2.6 62.1*110.4 MIPI ILI9881C 30PIN IPS HD
    RXL050025-A 720*1280 65.4*119.3*1.64 62.1*110.4 MIPI / 25PIN
    RXL050110-A 1080*1920 64.3*118.3*1.49 61.88*110.2 MIPI NT35596 39PIN IPS HD
    5.5 RXL055060-A 720*1280 71.66*129.99*1.61 68.04*120.96 MIPI OTM1283A 25PIN IPS 1080P
    RXL055082-A 720*1280 74.28*133.21*2.6 68.04*120.96 4 Lane MIPI ILI9881C 30PIN RTP/CTP Contact
    US
    RXL055097-A 1080*1920 74.28*133.21*2.6 68.04*120.96 4 Lane MIPI NT35532 25PIN IPS 1080P
    5.6 RXL056061-A 640*480 126.5*100*4.5 112.9*84.67 16/18RGB / 40PIN RTP/CTP
    7 RXL070018-A 800*480 165*100*3.5 154.08*85.92 RGB ILI6122+ILI5960 50PIN RTP/CTP
    RXL070083-A 800*480 165*100*5.7 154.08*85.92 MIPI ILI6122+ILI5960 50PIN RTP/CTP
    RXL070098-A 800*480 165.4*104.59*5.8 152.4*91.44 16/18/24RGB / 40PIN Wide temp/IPS
    RXL070107-A 1024*600 165*100*6 154.21*85.92 RGB NT52003+NT51008 50PIN RTP/CTP
    RXL070111-A 1024*600 165*100*3.5 154.21*85.92 MIPI EK79007AD+
    EK73215BCGA    		 50PIN RTP/CTP
    RXL070114-A 1024*600 164.9*100*3.5 154.21*85.92 LVDS 79001/EK73215BC 30PIN MVA
    RXL070116-A 1024*600 165*100*5.8 154.21*85.92 4 Lane MIPI / 30PIN IPS
    RXL070117-A 800*1280 103.46*160.78*2.17 94.2*150.72 MIPI NT35521 40PIN IPS
    RXL070084-A 800*1280 97.35*162.03*2.3 94.2*150.7 MIPI / 40PIN IPS Contact
    US
    RXL070029-A 1200*1920 98.75*160.85 94.5*151.2 MIPI / 40PIN IPS
    8 RXL080064-A 800*600 183*141*5.6 162*121.5 24RGB / 50PIN RTP/CTP
    RXL080050-A 800*1280 114.6*184.1*2.5 107.64*172.22 MIPI / 31PIN IPS
    RXL080120-A 1024*768 136*174*2.5 162*121.5 MIPI   50PIN RTP/CTP
    RXL080049-A 1024*768 183*141*6.3 162*121.54 LVDS   50PIN RTP/CTP
    9 RXL090065-A 800*480 211.1*126.5*3.5 198*111.7 24RGB / 50PIN RTP/CTP
    RXL090085-A 1024*600 210.7*126.5*5 196.61*114.15 RGB / 50PIN RTP/CTP
    10.1 RXL101086-A 800*1280 143*228.6*2.8 135.36*216.57 MIPI / 40PIN IPS
    RXL101100-A 1200*1920 143*228.7*2.2 135.36*216.58 MIPI / 40PIN IPS
    RXL101073-A 1080*1920 142.8*228.2 135.36*216.58 MIPI / 40PIN IPS
    RXL101108-A 1024*600 235*143*5.2 222.72*125.28 LVDS / 40PIN RTP/CTP Contact
    US
    RXL101112-A 1024*600 235*143*5 222.72*125.28 RGB / 30PIN IPS
    RXL101066-A 1280*800 229.46*149.1*2.5 216.96*135.6 LVDS / 40PIN IPS
    RXL101121-A 1280*800 229.46*150.2*4.5 216.96*135.6 LVDS   40PIN RTP/CTP
    10.4 RXL104067-A 800*600 228.4*175.4*5.9 211.2*158.4 24RGB / 60PIN RTP/CTP
    12.1 RXL121068-A 1024*768 279*209*9 245.76*184.32 LVDS / 20PIN RTP/CTP
    RXL121122-A 1024*768 260.5*203.5*10 248*187 LVDS / 20PIN RTP/CTP
    RXL121087-A 1024*768 260.5*204*8.4 245.76*184.3 LVDS / 30PIN IPS
    13.3 RXL133069-A 1920*1080 306.3*177.7*5.4 293.47*165.07 EDP / 30PIN IPS
    RXL133088-A 1920*1080 305.35*187.82*2.7 293.76*165.24 EDP / 30PIN IPS
    RXL133101-A 1920*1080 305.2*178.1*2.6 293.76*165.24 EDP / 30PIN IPS
    15.6 RXL156070-A 1920*1080 363.8*215.9*8.8 344.16*193.59 EDP / 30PIN 1000NITS Contact
    US
    RXL156089-A 1920*1080 359.5*223.8*3.2 344.16*193.59 EDP / 30PIN 220nits IPS
    19 RXL190071-A 1280*1024 396*324*11.2 376.32*301.06 LVDS / 30PIN CTP
    21.5 RXL215072-A 1920*1080 495.6*292.2*10.6 476.64*268.11 LVDS / 30PIN CTP
    RXL215090-A 1920*1080 489.3*287*12.8 476.06*267.8 LVDS / 30PIN IPS
