4.3 "TFT display has been widely used. 4.3" display has good display effect, bright elevation and smooth operation, so everyone likes to choose 4.3 "LCD display as the human-computer interaction interface. We all want a 4.3-inch LCD screen to last longer. We will discuss how to improve the service life of the 4.3 "screen. Avoid vibration Violent vibration. Do not apply pressure to the display, do not apply impact, squeeze and anti-electromagnetic interference to the back cover of the display.
No matter 4.3 "LCD display or other large and small screens, keep away from objects with strong magnetic field. The surrounding strong magnetic field will generate extra voltage in the interior, thus affecting the voltage stability of the LCD screen. The 4.3" screen will be distorted in the strong magnetic field for a long time, affecting the display effect and service life of the screen.
Be careful not to bring any water into the 4.3 "LCD screen. If the indoor humidity is too high, water may form inside the screen, resulting in leakage and short circuit of the 4.3-inch screen, which seriously burns the display. In the south of the mixed degree of higher areas, the LCD can be placed in a hotter, drier place, can also be regularly used not bright table lamp irradiation 4 inch screen province surface, so that the internal water evaporation.
Ruixiang produces 4.3 "LCD display for a long time, with multiple interface options, brightness can be selected according to the actual needs, support for touch screen, line, backlight and other customized services, welcome to consult Ruixiang customer service.
Ruixiang touch display technology Co., Ltd.
OEM/ODM customization is supported.
The following are not all sizes. If the size you need is not in the list, please tell us the size you need.
Size (inch) |
Part No. | Resolution | LCD OD | View Area (mm) |
Interface | IC | FPC | Remark | |
2.4 | RXL024074-A | 240*320 | 42.72*58.9*2.2 | 36.72*48.96 | MCU(P) | ILI9341V | 40PIN | RTP/CTP | Contact US |
RXL024091-A | 240*320 | 42.72*60.26*2.6 | 36.72*48.96 | MCU/SPI/RGB | ST7789V | 45PIN | RTP/CTP | ||
RXL024102-A | 240*320 | 42.72*60.26*3.6 | 36.72*48.96 | MCU | ST7789V | 45PIN | RTP/CTP | ||
RXL024102-A | 240*320 | 42.92*60.26*3.78 | 36.72*48.96 | MCU/SPI/RGB | ST7789V | 45PIN | IPS | ||
2.8 | RXL028052-A | 240*320 | 50.2*69.7*2.6 | 43.2*57.6 | MCU/SPI/RGB | ST7789V | 50PIN | RTP/CTP | |
RXL028075-A | 240*320 | 50.5*69.7*2.6 | 43.2*57.6 | MCU/SPI/RGB | ST7789V | 50PIN | IPS | ||
RXL028092-A | 240*320 | 50*69.2*2.45 | 43.2*57.6 | MCU(P) | ILI9341V | 37PIN | RTP/CTP | ||
3 | RXL030053-A | 240*400 | 45.4*77*2.6 | 39.24*65.4 | MCU/SPI/RGB | ILI9327 | 45PIN | IPS | Contact US |
RXL030076-A | 240*400 | 45.4*77*2.6 | 38.88*64.8 | MCU/SPI/RGB | ILI9327 | 45PIN | RTP/CTP | ||
3.2 | RXL032054-A | 240*320 | 55.04*77.2*2.5 | 48.6*64.8 | MCU(P)/RGB | ILI9341 | 40PIN | RTP/CTP | |
RXL032077-A | 240*320 | 55*77.2*2.6 | 48.6*64.8 | MCU/SPI/RGB | ST7789V | 50PIN | RTP/CTP | ||
3.5 | RXL035055-A | 320*240 | 76.9*63.9*3.25 | 70.08*52.56 | RGB | HX8238A | 54PIN | RTP/CTP | |
RXL035093-A | 320*480 | 54.66*82.94*2.3 | 48.96*73.44 | MCU(P)/RGB | ILI9488 | 40PIN | RTP/CTP | ||
RXL035103-A | 320*240 | 76.9*63.9*4.5 | 70.08*52.56 | RGB | HX8238A | 54PIN | RTP/CTP | ||
RXL035109-A | 320*240 | 76.9*63.9*4.55 | 70.08*52.56 | RGB | HX8238A | 54PIN | IPS | ||
RXL035113-A | 320*480 | 54.58*83.57*2.1 | 48.96*73.44 | MCU/SPI/RGB | ILI9488 | 50PIN | IPS | ||
RXL035036-A | 320*480 | 55.5*84.9*2.5 | 48.96*73.44 | MIPI | ILI9488 | 20PIN | IPS | ||
4 | RXL040056-A | 480*800 | 79.38*76.43*2.8 | 70.176*71.856 | SPI/RGB | ST7701S | 50PIN | IPS | Contact US |
RXL040078-A | 480*800 | 57.14*96.85*2 | 51.84*86.4 | MIPI | OTM8019A | 20PIN | IPS | ||
RXL040094-A | 480*800 | 58.26*98.1*2.55 | 51.84*86.4 | SPI+RGB | ILI9806E | 50PIN | IPS | ||
RXL040026-A | 480*800 | 57.15*96.85*2.3 | 51.84*86.4 | RGB | ILI9806 | 30PIN | IPS | ||
RXL040104-A | 480*800 | 57.14*96.85*2 | 51.84*86.4 | MCU(P)/RGB | ILI9806G | 50PIN | RTP/CTP | ||

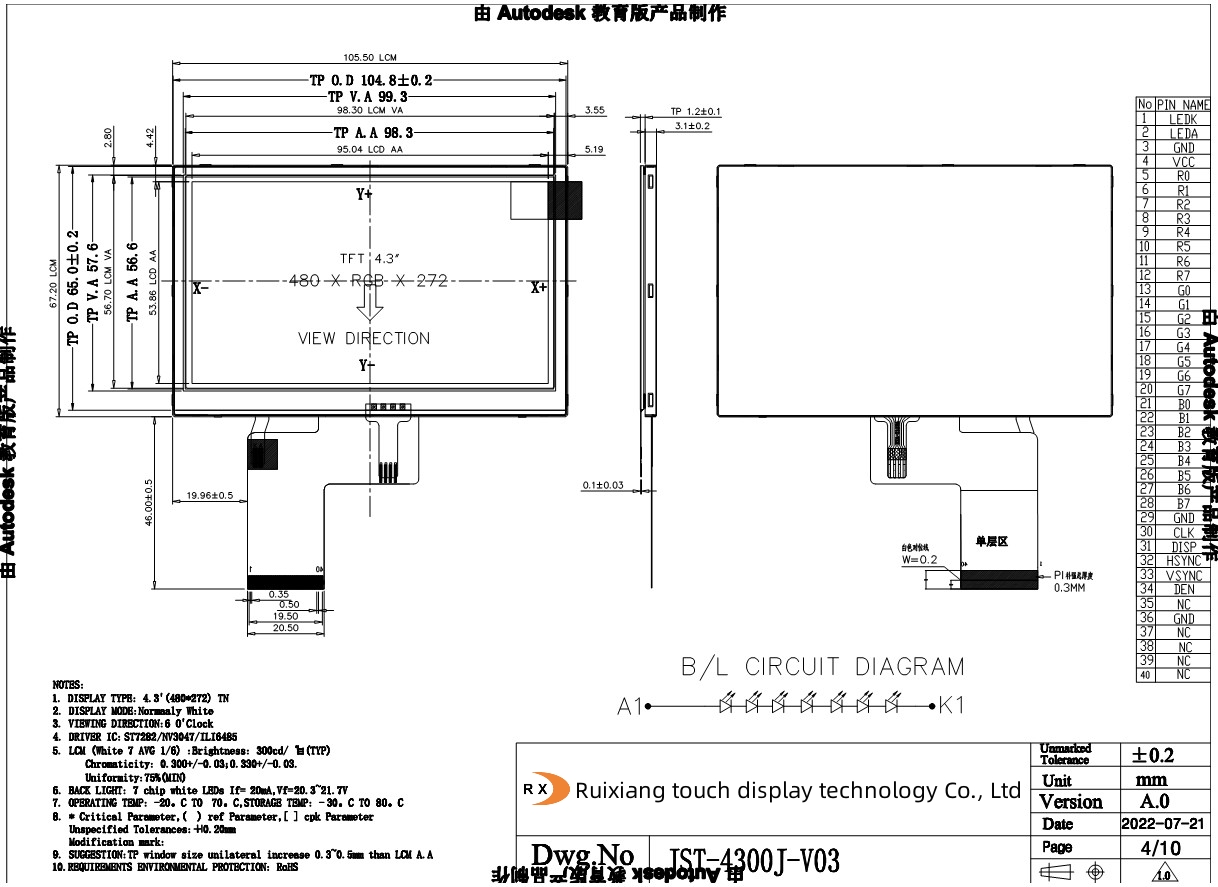

4.3 | RXL043057-A | 480*272 | 105.4*67.15*2.86 | 95.04*53.86 | 16/18/24RGB | ST7282 | 40PIN | RTP/CTP | |
RXL043079-A | 480*800 | 62.5*105.55*2.5 | 56.16*93.6 | 16/18/24RGB | ILI9806E | 45PIN | IPS | ||
RXL043095-A | 480*272 | 105.4*67.15*2.85 | 95.04*53.86 | 8/24RGB | SC7283 | 40PIN | Wide temp/IPS | ||
RXL043105-A | 480*800 | 62.5*105.55*2.5 | 56.16*93.6 | MIPI | ILI9806E | 20PIN | IPS | ||
RXL043119-A | 480*272 | 53.856*95.04 | 53.856*95.04 | RGB | HX8257-A00 | 40PIN | RTP/CTP | ||
RXL043002-A | 480*272 | 53.856*95.04 | 53.856*95.04 | RGB | HX8257-A00 | 40PIN | RTP/CTP | ||
4.5 | RXL045058-A | 480*854 | 61.54*110.1*2.55 | 55.44*98.64 | SPI+RGB | ILI9806E | 45PIN | RTP/CTP | Contact US |
RXL045080-A | 480*854 | 61.54*110.1*2.55 | 55.44*98.64 | MIPI | ILI9806E | 20PIN | IPS | ||
5 | RXL050059-A | 480*272 | 120.8*75.9*4.2 | 110.88*62.83 | RGB | HX8257-A00 | 40PIN | RTP/CTP | |
RXL050081-A | 800*480 | 120.7*75.8*4.5 | 108*64.8 | RGB | ILI6122+ILI5960 | 40PIN | RTP/CTP | ||
RXL050063-A | 800*480 | 120.7*75.8*4.3 | 108*64.8 | RGB | ILI6122+ILI5960 | 40PIN | RTP/CTP | ||
RXL050020-A | 800*480 | 120.7*75.8*4.3.1 | 108*64.8 | RGB | ILI6122 | 40PIN | RTP/CTP | ||
RXL050096-A | 800*480 | 120.9*78.1*2.95 | 108*64.8 | 16/18/24RGB | ST7262 | 40PIN | Wide temp/IPS | ||
RXL050106-A | 720*1280 | 67.56*122.35*2.6 | 62.1*110.4 | MIPI | ILI9881C | 30PIN | IPS HD | ||
RXL050025-A | 720*1280 | 65.4*119.3*1.64 | 62.1*110.4 | MIPI | / | 25PIN | |||
RXL050110-A | 1080*1920 | 64.3*118.3*1.49 | 61.88*110.2 | MIPI | NT35596 | 39PIN | IPS HD | ||
5.5 | RXL055060-A | 720*1280 | 71.66*129.99*1.61 | 68.04*120.96 | MIPI | OTM1283A | 25PIN | IPS 1080P | |
RXL055082-A | 720*1280 | 74.28*133.21*2.6 | 68.04*120.96 | 4 Lane MIPI | ILI9881C | 30PIN | RTP/CTP | Contact US |
|
RXL055097-A | 1080*1920 | 74.28*133.21*2.6 | 68.04*120.96 | 4 Lane MIPI | NT35532 | 25PIN | IPS 1080P | ||
5.6 | RXL056061-A | 640*480 | 126.5*100*4.5 | 112.9*84.67 | 16/18RGB | / | 40PIN | RTP/CTP | |
7 | RXL070018-A | 800*480 | 165*100*3.5 | 154.08*85.92 | RGB | ILI6122+ILI5960 | 50PIN | RTP/CTP | |
RXL070083-A | 800*480 | 165*100*5.7 | 154.08*85.92 | MIPI | ILI6122+ILI5960 | 50PIN | RTP/CTP | ||
RXL070098-A | 800*480 | 165.4*104.59*5.8 | 152.4*91.44 | 16/18/24RGB | / | 40PIN | Wide temp/IPS | ||
RXL070107-A | 1024*600 | 165*100*6 | 154.21*85.92 | RGB | NT52003+NT51008 | 50PIN | RTP/CTP | ||
RXL070111-A | 1024*600 | 165*100*3.5 | 154.21*85.92 | MIPI | EK79007AD+ EK73215BCGA |
50PIN | RTP/CTP | ||
RXL070114-A | 1024*600 | 164.9*100*3.5 | 154.21*85.92 | LVDS | 79001/EK73215BC | 30PIN | MVA | ||
RXL070116-A | 1024*600 | 165*100*5.8 | 154.21*85.92 | 4 Lane MIPI | / | 30PIN | IPS | ||
RXL070117-A | 800*1280 | 103.46*160.78*2.17 | 94.2*150.72 | MIPI | NT35521 | 40PIN | IPS | ||
RXL070084-A | 800*1280 | 97.35*162.03*2.3 | 94.2*150.7 | MIPI | / | 40PIN | IPS | Contact US |
|
RXL070029-A | 1200*1920 | 98.75*160.85 | 94.5*151.2 | MIPI | / | 40PIN | IPS | ||
8 | RXL080064-A | 800*600 | 183*141*5.6 | 162*121.5 | 24RGB | / | 50PIN | RTP/CTP | |
RXL080050-A | 800*1280 | 114.6*184.1*2.5 | 107.64*172.22 | MIPI | / | 31PIN | IPS | ||
RXL080120-A | 1024*768 | 136*174*2.5 | 162*121.5 | MIPI | 50PIN | RTP/CTP | |||
RXL080049-A | 1024*768 | 183*141*6.3 | 162*121.54 | LVDS | 50PIN | RTP/CTP | |||
9 | RXL090065-A | 800*480 | 211.1*126.5*3.5 | 198*111.7 | 24RGB | / | 50PIN | RTP/CTP | |
RXL090085-A | 1024*600 | 210.7*126.5*5 | 196.61*114.15 | RGB | / | 50PIN | RTP/CTP | ||
10.1 | RXL101086-A | 800*1280 | 143*228.6*2.8 | 135.36*216.57 | MIPI | / | 40PIN | IPS | |
RXL101100-A | 1200*1920 | 143*228.7*2.2 | 135.36*216.58 | MIPI | / | 40PIN | IPS | ||
RXL101073-A | 1080*1920 | 142.8*228.2 | 135.36*216.58 | MIPI | / | 40PIN | IPS | ||
RXL101108-A | 1024*600 | 235*143*5.2 | 222.72*125.28 | LVDS | / | 40PIN | RTP/CTP | Contact US |
|
RXL101112-A | 1024*600 | 235*143*5 | 222.72*125.28 | RGB | / | 30PIN | IPS | ||
RXL101066-A | 1280*800 | 229.46*149.1*2.5 | 216.96*135.6 | LVDS | / | 40PIN | IPS | ||
RXL101121-A | 1280*800 | 229.46*150.2*4.5 | 216.96*135.6 | LVDS | 40PIN | RTP/CTP | |||
10.4 | RXL104067-A | 800*600 | 228.4*175.4*5.9 | 211.2*158.4 | 24RGB | / | 60PIN | RTP/CTP | |
12.1 | RXL121068-A | 1024*768 | 279*209*9 | 245.76*184.32 | LVDS | / | 20PIN | RTP/CTP | |
RXL121122-A | 1024*768 | 260.5*203.5*10 | 248*187 | LVDS | / | 20PIN | RTP/CTP | ||
RXL121087-A | 1024*768 | 260.5*204*8.4 | 245.76*184.3 | LVDS | / | 30PIN | IPS | ||
13.3 | RXL133069-A | 1920*1080 | 306.3*177.7*5.4 | 293.47*165.07 | EDP | / | 30PIN | IPS | |
RXL133088-A | 1920*1080 | 305.35*187.82*2.7 | 293.76*165.24 | EDP | / | 30PIN | IPS | ||
RXL133101-A | 1920*1080 | 305.2*178.1*2.6 | 293.76*165.24 | EDP | / | 30PIN | IPS | ||
15.6 | RXL156070-A | 1920*1080 | 363.8*215.9*8.8 | 344.16*193.59 | EDP | / | 30PIN | 1000NITS | Contact US |
RXL156089-A | 1920*1080 | 359.5*223.8*3.2 | 344.16*193.59 | EDP | / | 30PIN | 220nits IPS | ||
19 | RXL190071-A | 1280*1024 | 396*324*11.2 | 376.32*301.06 | LVDS | / | 30PIN | CTP | |
21.5 | RXL215072-A | 1920*1080 | 495.6*292.2*10.6 | 476.64*268.11 | LVDS | / | 30PIN | CTP | |
RXL215090-A | 1920*1080 | 489.3*287*12.8 | 476.06*267.8 | LVDS | / | 30PIN | IPS |
